Line Studies Toolbar Menu on MetaTrader 4
Sometimes traders will say "oh, I can't find Fibonacci expansion tool on my MetaTrader 4 where can I get it?"

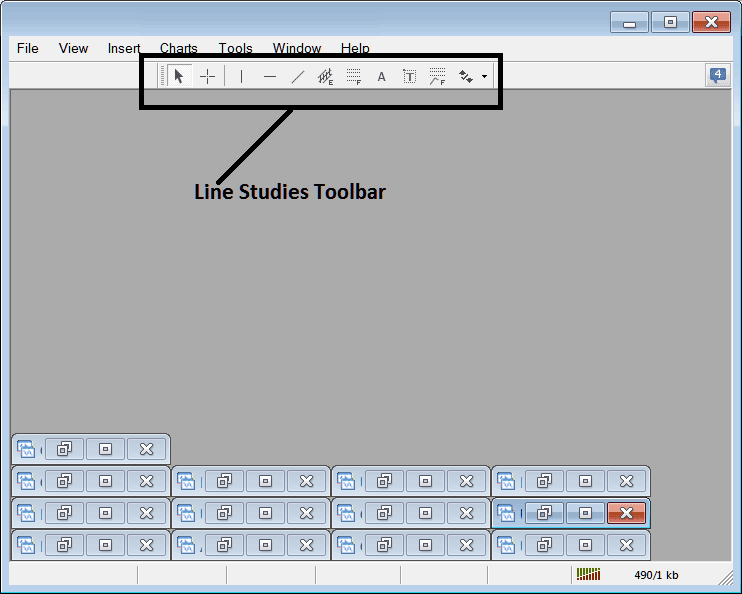

The thing is that all these line studies are located on the line studies tool bar: however, by default not all are set to display, therefore a trader must know where to get these trading tools that are not shown by default on the MT4 CFD Platform. So how can a trader add a tool, to the line studies tool bar shown below?
Customize a Toolbar on CFDs Trading Platform
To add a tool not listed above a trader has to follow these following steps
- Right Click at the tool-bar button to the left of this(Looks like a stack of coins)as displayed below
3. Click customize 4. Add all Tools

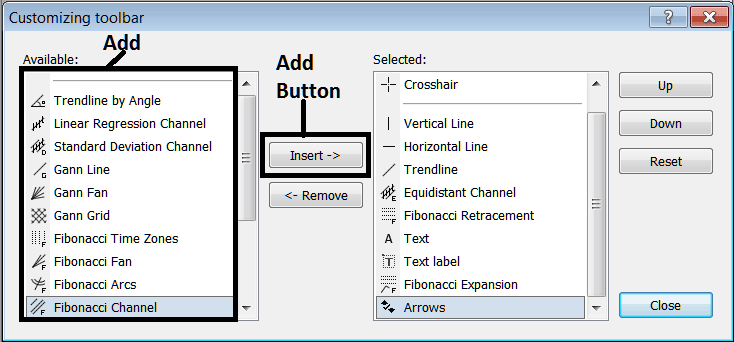

The following customize popup will appear:

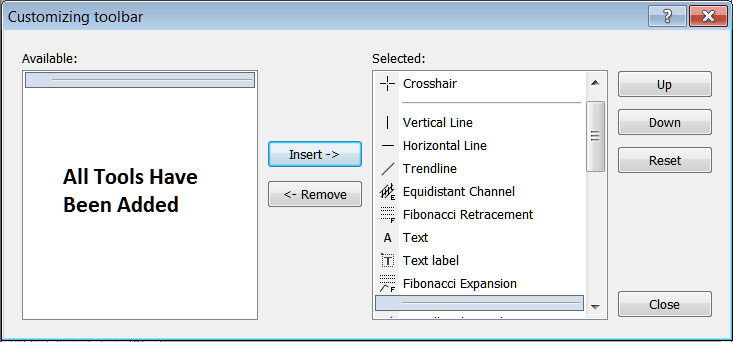

Choose all the tools from the left panel and add them: After adding this will look like:

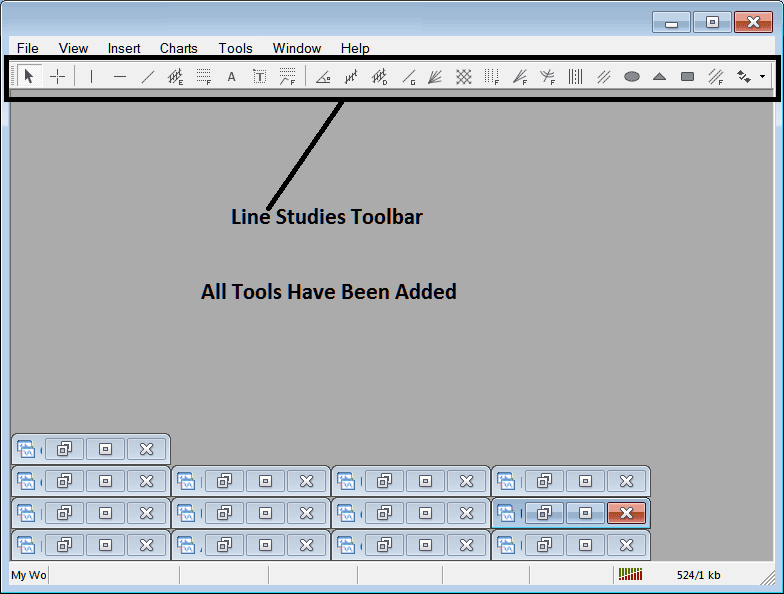

The toolbar will now look like:

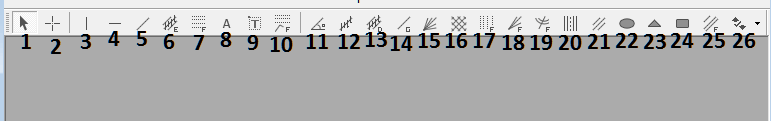

Explanations of Each Tool
Following is explanation of each tool on this tool-bar.
1: Select mouse as cursor, change mouse to the default cursor
2: Select Cross Hair cursor, a type of cursor that maps coordinates to the axis of the charts
3: Draw a vertical line
4: Draw a Horizontal line
5: Draw a cfd trend line
6: Equidistant Channel
7: CFDs Fibonacci Retracement
8: Text button
9: Text Label Button Key
10: CFD Fibonacci Expansion
11: CFD Trading Trend by Angle
12: Linear Regression Channel
13:Standard Deviations Channel
14: Gann Lines
15: Gann Fan
16: Gann Grid
17: Fibonacci Time zones
18: Fib Fan
19: Fibo Arc
20: Cycle Lines
21: Andrew's Pitchfork
22: Insert Ellipse
23: Insert Triangle
24: Insert Rectangle
25: Fibonacci Channels
26: Draw Arrows
How to Remove Tools from CFD Trading Software

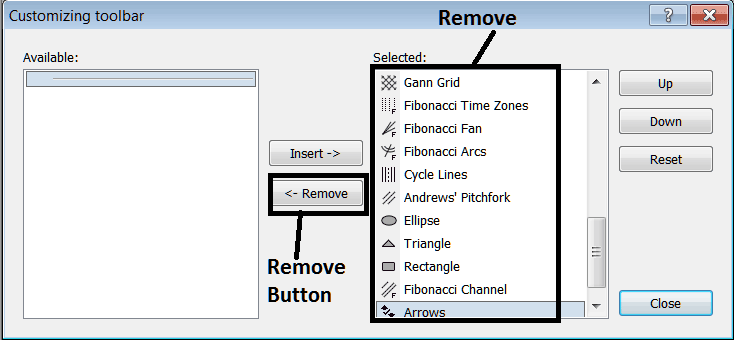

As a trader you'll not require all these button keys and you can hide some of them by clicking customize button key, then select some of the items on the right window and then select hide.
Remove the above tools by clicking on them and then clicking the remove button, so as to save space on your MT4 platform workspace.
